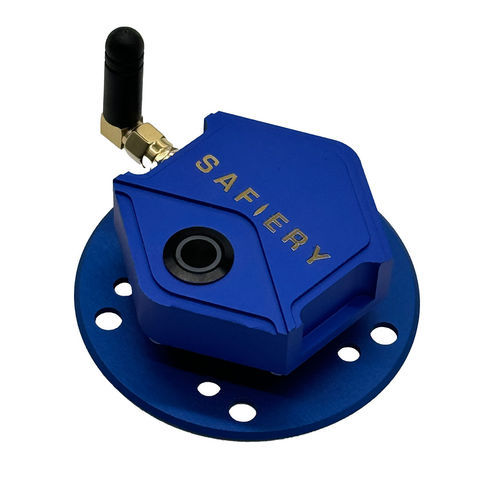

Level sensor STAR-tank

for boatsfor tank

Now available live with Victron 3.50~28 GX Beta. Battery operated Pulsed Coherent Radar tank level Sensor to 1000mm with 1mm repeatability and usable in black water, grey water and fresh water tanks. The sensor can be shipped ina 2m tank level or 10m tank level configuration. The accuracy of the sensor is then less over a longer range. Specifications This battery powered sensor: Bluetooth Connection to Victron GX models ONLY Battery Life 3-5 years (longer range and lower level tank, battery life 3 years. Shorter range and tank level typically 50% then 5 year) Battery 2744 Bluetooth 5.3 Adv Output ONLY Deadband 30mm Max Depth 1200mm pre-set. Can be ordered to 2000mm Repeatability 1mm Press button on top and reporting changes to 10 sec intervals for 10mins (during commissioning) After 10 mins at 10 sec reporting, interval changes to 60 second intervals ETSI Safiery declares that this sensor is compliant with the European commission radio equipment directive 2014/53/EU article 3.1 and 3.2. Mounting The base of the Sensor has 2 sets of holes: SAE 5 bolt hole For Plastic Tanks: Glue Sensor to top of tank. The SAE bolt holes form the basis for the bonding. Cable Length: No Cable. It is Battery powered and Bluetooth Connections: No Connections Simple Calibrations: Calibration needed from Display
