Boat switch panel SP8

currentwaterproofLED

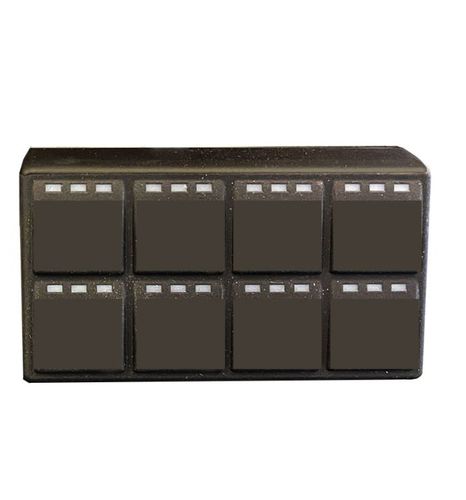

STAR-switch SP8 Exterior is an IP67 robust 8-Button Switch Block: Built to withstand the toughest conditions. Compact Design: 105x 63x 16mm. Operates STAR-light with CAN. Backlit press tactile buttons, Tri-Color LED for On/Off/Fault. Optional Engraved Custom Buttons.. Multi-Function Buttons: Single press for one channel, hold to dim. Double press to switch LED to a second colour or RGBW channel. Custom Engraving the buttons is an additional fee and a separate order. To order the custom engraving go to the form at the bottom of this page. This is a separate ordering process to the switch itself. There are conditions for ordering which need to be read. STAR-switch 8 button Rugged Switch block 105mm x 63mm x 16mm with plug 22mm behind Secured by 2 x M6 bolts Sealed to IP67 Wired at 12V with CAN Press buttons backlit (not capacitive touch) Rubber encapsulated surface Three LED indicators: Optional Custom Engraving Press button once for one channel, hold to dim. Double press same button and LED can be switched to second colour or RGBW channel. Deutsch plug 4 pin connector on rear Each button can be in parallel to 6 way switching Dimmable LED indicators Vibration and impact resistant Operating temp: -40oC to +85oC Long life: 1,000,000 cycles per key Support for multiple key press combinations Compatible with new STAR-power and STAR-light: Dimming control of LEDs Double tap and switch LED colour if dual colour of RGBW LED's wired to STAR-light module. Up to 6 switch buttons can control one STAR-light channel
