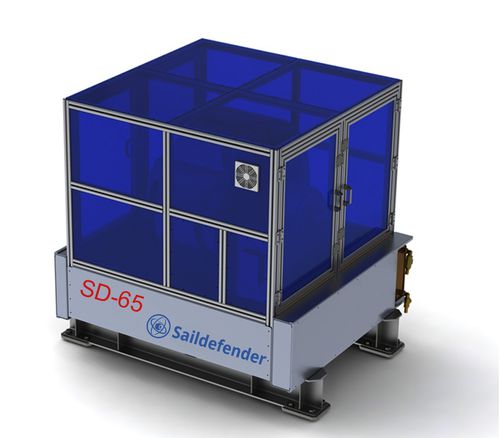

Gyroscopic stabilizer SD-65for ships
Add to favorites
Compare this product
Characteristics
- Type
- gyroscopic
- Application domain
- for ships
- Rated speed
2,500 rpm
(15,708 rad.min-1)- Torque output
195,000 Nm
(143,825 ft.lb)- Spool up time to stabilization
40 min
- Input voltage
380 V
- Noise level
73 dB
- Length
1,370 mm
(54 in)- Width
1,690 mm
(67 in)- Height
1,570 mm
(62 in)- Weight
3,180 kg
(7,011 lb)
Description
Anti-roll Gyro Stabilizer
For yachts, survey/pilot/research/working ships/vessels
For ships/vessels of several thousand tons
6000 Hours Maintenance-free Time
Saildefender eliminates up to 95% of boat roll,Greatly improve the comfort on board, once you try it,you can't leave it. Getting ready and join us!
Saildefender SD65 is designed for boat which full load displacement should under 170 tonnages. The power requirement is AC 380v, 17kw.
Saildefender's mission is to make the most durable and economical gyro stabilizers in the world. We use a unique mechatronic system and the maintanence free time is 6000 hours.
If you are interested in gyro stabilizer, do not hesitate to contact us.
