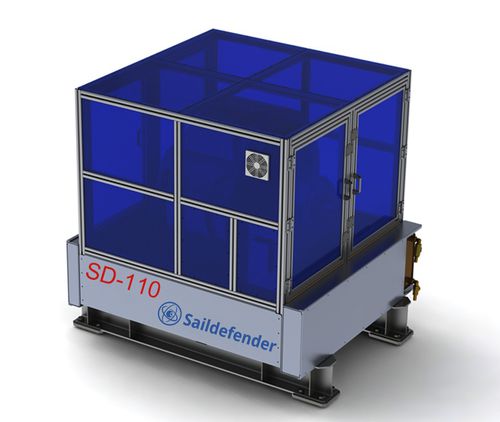

Gyroscopic stabilizer SD-110for ships
Add to favorites
Compare this product
Characteristics
- Type
- gyroscopic
- Application domain
- for ships
- Rated speed
2,100 rpm
(13,195 rad.min-1)- Torque output
330,000 Nm
(243,396 ft.lb)- Spool up time to stabilization
40 min
- Input voltage
380 V
- Noise level
74 dB
- Length
1,600 mm
(63 in)- Width
1,980 mm
(78 in)- Height
1,720 mm
(68 in)- Weight
4,950 kg
(10,913 lb)
Description
Anti-roll Gyro Stabilizer
For yachts, survey/pilot/research/working ships/vessels
For ships/vessels of several thousand tons
6000 Hours Maintenance-free Time
Saildefender eliminates up to 95% of boat roll,Greatly improve the comfort on board, once you try it,you can't leave it. Getting ready and join us!
Saildefender SD110 is designed for boat which full load displacement should under 280 tonnages. The power requirement is AC 380v, 24kw.
Saildefender's mission is to make the most durable and economical gyro stabilizers in the world. We use a unique mechatronic system and the maintanence free time is 6000 hours.
If you are interested in gyro stabilizer, do not hesitate to contact us.
