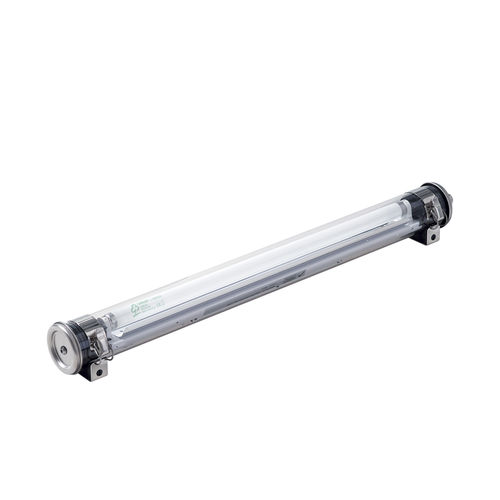

Outdoor wall light NIEPCE 70 T8

for shipscompact fluorescentwall-mount

Technical key features Technology T8 Max. temp. 30 °C Power 1 × 18 W to 1 × 58 W Key features Small luminaire Easy lamp change Very good resistance to oils and hydrocarbons Resists to cleaning with high pressure jet Durable and maintainable luminaire Technical data Light source 1x T8 lamp, not included Optic • White powder coated gear tray serving as reflector for diffuse general lighting • Extensive reflector (wide beam) in anodised aluminum sheet • Intensive reflector (narrow beam) in anodised aluminium sheet Control gear Hot cathode electronic Control Gear (EEI A2) Power supply 220-240 V 50/60 Hz Electrical class Class I Operating temperature -20 °C to +30 °C Connection Cable gland in nickel-coated brass for Ø cable 5–12 mm (3 × 2,5 mm²) Fixing 2 Stainless Steel fixing straps with Spring Clip Method of construction • Housing in one piece with reinforced imperviousness by radial expansion of the sealing • Closing by tightening the nut on the cable gland • Patented system with automatic electrical connection on closure (CLOSE'N CONNECT) • Maintenance without intervention at the cable by extracting the gear tray on the opposite side of the power supply
