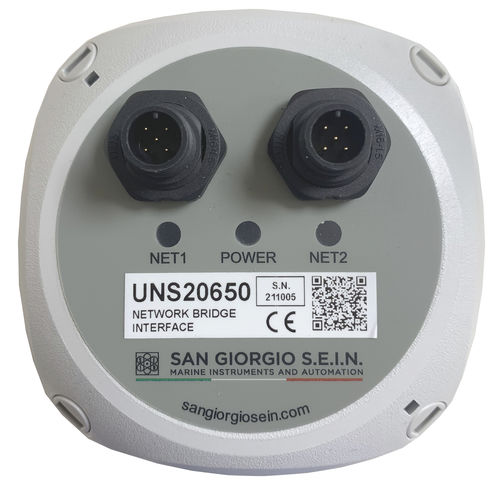

Boat network interface Network Bridge

The systens provides power isolation between indipendent CAN Bus / NMEA2000 networks. With the three leds allow the control to the CAN Bus line and power supply. Dimensions: 93 x 93 x 62 mm ________________________________________________________ Mounting hole: 108 mm (2 x mounting brackets) ________________________________________________________ Power supply: 12-24V - <500mA ________________________________________________________ Connectors: 2 x M12-5 pin ________________________________________________________ Case material: PC-GFS (polycarbonate) ________________________________________________________ Protection grade: IP67 ________________________________________________________ Operating temperature: 0 +55 °C
