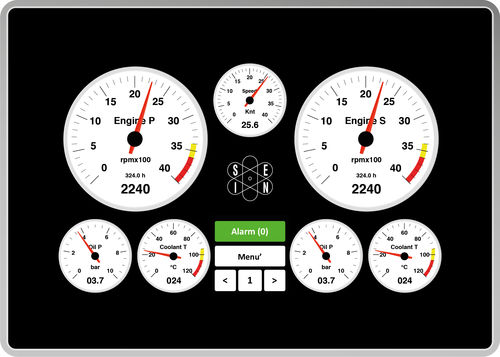

Boat monitoring and control panel 7" ADVANCED

for yachtsenginetouch screen

7" ADVANCED Display UNS10195 High performance monitoring and control system specifically designed for naval, professional and pleasure boats applications. It offers a new 7” touch screen display optimized for sun visibility, a new design and many possibilities of connection to on-board apparatus and portable devices. The innovative “Flexible Hardware” electronics provides direct acquisition of many measurement sensors without additional signal converters.Three CAN Bus J1939 ports and one NMEA2000 compatible output make it the perfect device to use with multifunction navigation systems. It can be customised and programmed via LAN, WiFi and USB interface. Dimensions 200 x 143 x 76.1mm Mounting hole 183 x 135mm Display 7” color TFT LCD, Antiglare Resolutions 800 x 480pixel Touch-screen Capacitive CPU and memory Advanced Hybrid CPU Dual Cortex A9 + FPGA, 1 GB RAM DDR3 Data memory 128MB Flash + 16GB SD Card Power supply 9-36V <1mA average Inputs/Outputs 8 x Analog inputs 0-300Ω 16 x Analog inputs 0-10V/4-20mA 8 x Analog inputs NTC 0-100KΩ with autorange 8 x Analog thermocouple inputs 6 x Analog inputs 0-36V 3 x Frequency inputs W alternator / Pickup 8 x Digital inputs ON/OFF 8 x Relay outputs, single contact max 500mA Communication ports N.4 CAN Bus 2.0B N.1 Ethernet 100M (protocols Modbus TCP e Nav) N. 1 Wifi 802.11bgn N. 1 USB OTG N. 1 NMEA0183 N. 1 RS232 Operating temperature 0..55°C (-20..+70°C on demand) IP Protection grade IP65 Accessories Protective cover for display Approval RINA
