Hydraulic windlass

electricfor boatsvertical

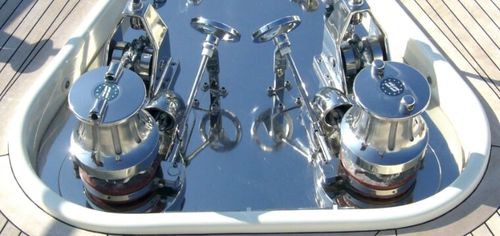

Different solutions of vertical windlass in the electric or hydraulic system version. The range is made up of different models made in stainless steel or bronze chrome. They are available with different strengths and details. We make models which have a chain of a diameter of 8 mm up to a chain with diameter 28 mm with or without traversino. On request we can also provide windlasses with parts approved by Authorities of the naval register. VERTICAL WINDLASSES STAINLESS STEEL 8000 Vertical electric 8000 windlasses for yacht. Made of stainless steel with bronze chain wheel. Drive joint of the chain wheel with frontal sprocket toothing and handwheel control. Band brake. On request hydraulically driven. VERTICAL WINDLASSES STAINLESS STEEL 4000-3000 Vertical electric 4000 3000 windlasses for yacht. Made of stainless steel with drive of the bronze chain wheel by double clutch and lever control. Band brake with removable lever drive. On request hydraulically driven. VERTICAL WINDLASSES TOP CLASS 3000-2000 Vertical electric Top class windlasses for yacht. Made of polished stainless steel with bronze chain wheel. Bronze stopping brake placed inside the deck plate. Chain pipe and stripper with protection frame. On request hydraulically driven. VERTICAL WINDLASSES BRONZE 2000-1000 Vertical electric 2000-1000 windlass. Made of polished stainless steel base with bronze chain wheel and chromium plated bronze warping capstan.
