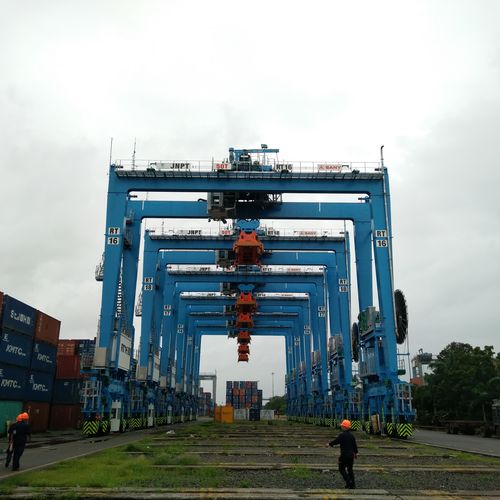

Container gantry crane RTG5 series

Through proper arrangement of guide pulleys in the horizontal and vertical direction, the movement of the four wire ropes can effectively prevent the swing of the spreader, greatly improving container hoisting efficiency. New torque anti-sway system(2) The new-developed four rope anti-sway system (Patent number: ZL201220568248.4) effectively achieve bidirectional anti-sway of the spreader. This system allows a ±250mm movement of spreader in the gantry or trolley direction, greatly improving container hoisting efficiency. Container Auto-tracking and auto-hoisting system Soft landing of spreader onto the container Software intelligent deceleration technology and hardware inspection protection device are applied to adjust the time and position of deceleration dynamically. This helps decrease crush and wheel load, thus increasing service life and stability of the crane. Intelligent rectification technology of gantry Deflection of bogie relative to the rail is detected in real-time as the control signal for the transducer to control motor speed. The bogie deflection can be corrected manually (or automatically) to prevent rail gnawing, thus ensuring sate operation, reducing wearing between wheel and rail, and span service life of crane. Intelligent control technology Distributed bus control system is applied, which is clear in structure and easy to maintain. Perfect crane information management system monitors the operation status in real time; Full security devices collects the position, limit, anticollision protection, interlock protection, overload protection grounding protection, and lightning protection of all mechanisms.
