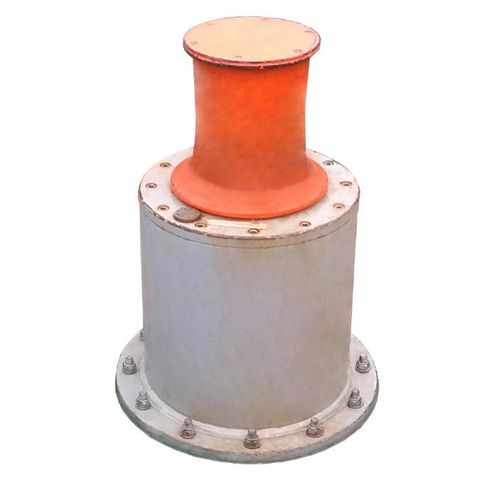

Boat capstan VPV2-K1H-K

electric

Standard equipment Winch is consist of: - steel, aluminum or bronze warping drum, dimension dia 200 mm, length 270 mm - planetary gearbox - INOX or steel basement, or cupola - drive group: electro-motor or hydro-motor Additional equipment For electric drive: - electro-start box For hydraulic drive:- operating distributor - hydraulic pump - mechanical or electromagnetic coupling - hydraulic oil tank, complete with filler breather, return filter, sight level gauge and oil outlet with ball valve - hydraulic hoses and armature Description Capstan winch is designed for warping rope. Technical data: VPV2-K1H-p VPV4-K1H-p VPV6-K1H-p - drum torque M = 2 to 6 kNm - drum speed revolution n = 24 to 17,5 rpm - pulling force (1. layer) F = 19 to 50 kN - drum diameter D = 200 mm - drum crown diameter Dm = 290 mm - drum width, max B = 270 mm - pulling sped (1. layer) v1 = 17 to 13 m/min - gearbox ratio i = 45 to 64 : 1 - hydromotor displacement q = 20 to 40 cm3/rev - working pressure p = 160 bar - oil flow Q = 22 to 46 l/min - winch weight G = 150 to 190 kg - material (drum/frame) AL alloy/INOX Info - At Customer’s request, changes can be made if technically feasible - SCAM marine gives a 1-year warranty for its products starting from the delivery date.
