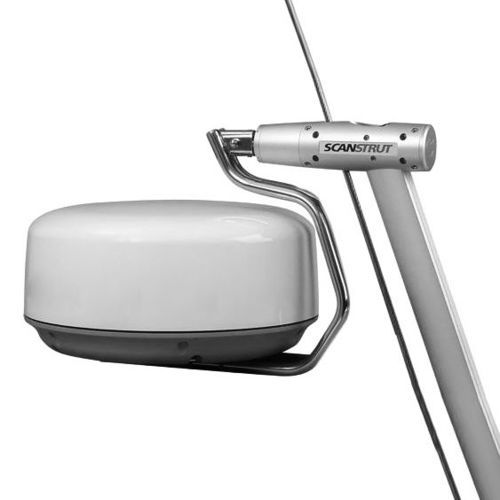

Radar antenna mount LMB-F1

stainless steelself-leveling

2.6m (8’6”) high, mounts forward of the backstay, keeping your radar away from any interference, leaving a clear deck free from obstruction. Constructed from the best marine-grade aluminium, designed to fit the most up to date radars from Garmin, Raymarine and B&G. Product Information. Hydraulic damping The main levelling unit features a fine-tuned damping system which reacts to major changes in heel angle of the boat. It is entirely maintenance-free and no power is required. Bespoke mounting pole 2.6m (8’6”) aluminium mounting pole, supplied in 2 lengths with hidden joiner piece. Cables are routed down a cable channel for a neat install. Extension pieces are available. High strength universal base for mounting pole Eliminates loading on backstay. The base can be deck, transom or chainplate mounted. Suitable for any yacht Stainless radome cradle has a fine tune adjustment for backstay angle and the product can be installed on both adjustable and split backstays (see faq for further information). Nylon backstay bushing supplied Clamps around backstay allowing cable tension to be adjusted. Mount your radar higher Additional 0.6m and 1.3m lengths available to mount your radome higher
