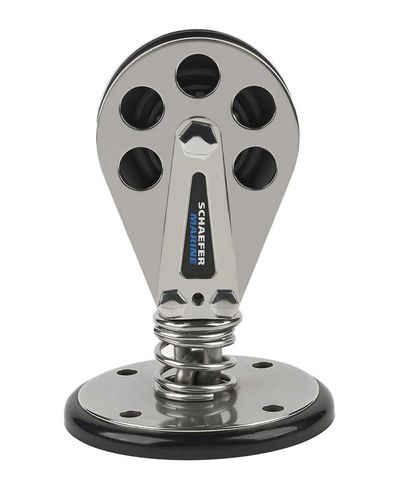

Single block 10-62-UCwith hasp/springwith ball bearingmax. rope ø 16 mm
Add to favorites
Compare this product
Characteristics
- Number of sheaves
- single
- Configuration
- with hasp/spring
- Bearing type
- with ball bearing
- Maximum line diameter
- max. rope ø 16 mm
- Application domain
- for sailboats
- Material
- stainless steel
- Working load
1,700 kg
(3,747.9 lb)
Description
10 Series Stand Up Block with Stainless Steel cheeks and Aluminum "universal circuit" ball bearing sheave. Aluminum sheave run on Delrin(tm) ball bearings for a very strong yet low-friction sheave. Stainless Steel base provides high safe working load when combined with optional backing plate part number 97-50. Bolted construction allows for easy maintainence. Sheave Dia. 3-1/4" (83 mm), Max Line 5/8" (16 mm), Dia. includes urethane base 4-1/2" (114 mm), Height 6-3/32" (155 mm), H2 3-1/8" (79 mm), Fastener Size (4),5/16" RH (8 mm), C/C 2-5/16" (59 mm), SWL 3750 lbs (1700 kg), Weight Stain. 2 lbs. 6.5 oz. (1.09 kg)
