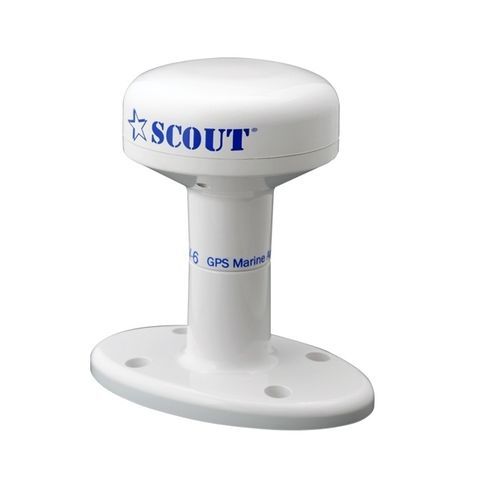

GPS antenna NAV-6for boatsomnidirectional
Add to favorites
Compare this product
Characteristics
- Network
- GPS
- Application domain
- for boats
- Type
- omnidirectional
- Frequency range
Min.: 1,572 MHz
Max.: 1,610 MHz
- Gain
23 dB, 24 dB
- Electrical power
0.1 W
- Operating temperature
Min.: -40 °C
(-40 °F)Max.: 85 °C
(185 °F)
Description
NAV-6 is a GPS and GLONASS antenna especially designed for the marine environment. It combines a high performance GPS patch antenna and a 24 dB low noise amplifier (at 5V DC) into a compact waterproof antenna with exclusive design.
Connect the NAV-6 to a GPS or GLONASS receiver to act as an external antenna and improve the reception signal when the GPS unit doesn’t have a good view of the sky and the internal antenna doesn’t perform well.
NAV-6 is also a GPS antenna for the most popular AIS transponders on the market with TNC connector.
NAV-6 minimizes temporary loss of signal during navigation and maintains the best possible accuracy.
NAV-6 is supplied with deck mount, mounting set and a 10 m (33′) RG-58 cable with TNC male connectors. Standard 1″ x 14 threads for pole mounting.
10 m (33′) RG-58 cable with TNC male connectors
1″ x 14 thread standard mount
