Ready for any challenge

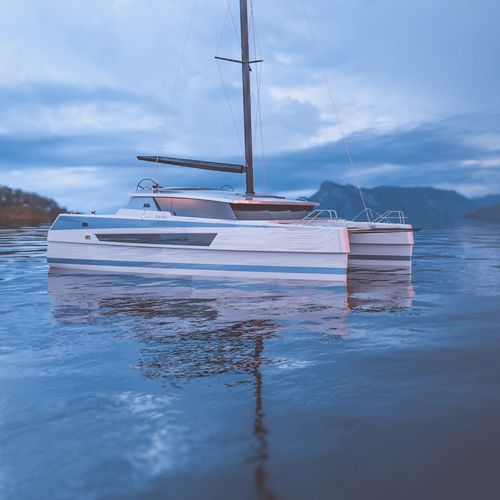

The SB450 is a high-performance catamaran designed for oceanographic research missions and for leasing and rental activities.
Slender water lines and structural elements characterized by carbon and Kevlar reinforcements characterize the sporty soul of the new addition to SEABUS.
General features
ISO 8666 length (Lh): 13.560 m
Overall length with bowsprit: 15.160 m
Waterline Length (LWL): 13.476m
Maximum beam (BOA): 7,573 m
Draft (T) a.p.: 1,550 m
Construction height (D): 2.40 m
Free board at p.c. (BL) forward: 1,748 m
Power unit
Standard propulsion engine system: 2 × 75 HP VOLVO PENTA
Performance
Max speed in calm sea at ½ load: 11 kn
Autonomy (at 12 kn a bw): 900 mg
Hourly consumption at 10 kn: 18 L
Displacement
Full load displacement: 14000 kg
Minimum operational displacement: 10500 kg
Reserves and fuels
Fuel reserve (net at 10% reserve and 5% non-breathable: 800 L
Fresh water reserve: 1200 l
Black water tanks: l 2 × 200
Gray water tanks: l 2 × 250 l
