Boat pump 23B seriestransfercirculationwater
Add to favorites
Compare this product
Characteristics
- Application domain
- for boats
- Applications
- transfer, circulation
- Fluid
- water
- Technology
- diaphragm
- Operation
- electric
- Voltage
- 240 V
- Other characteristics
- self-priming
- Flow rate
1.89 l/min, 2.65 l/min, 3.8 l/min, 4.5 l/min, 5.6 l/min
(0.5 us gal/min, 0.7 us gal/min, 1 us gal/min, 1.19 us gal/min, 1.48 us gal/min)- Pressure
4.8 bar
(69.6 psi)- Height
103 mm
(4 in)- Length
185 mm
(7 in)- Width
70 mm
(3 in)
Description

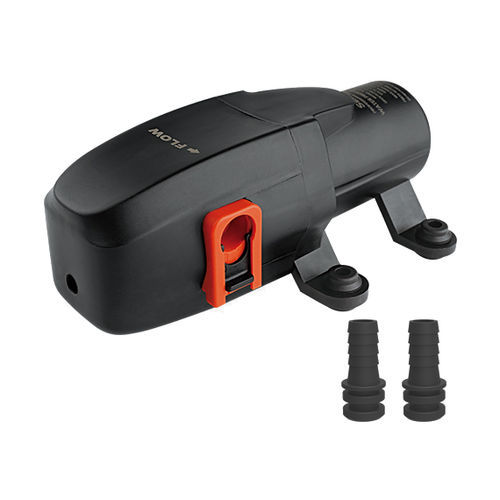

SEAFLO 23 Series diaphragm pump is design for wider applications of liquid transfer, pressurization and circulation. 23 Series is compact design but flow rate is up to 1.5GPM (5.6LPM), and pressure is up to 120PSI (8.2Bar). 23 Series supports flexible customization. Firstly its control type can choose from demand, by pass, no switch, manual switch and any combination of these types. Secondly, with compatible fixtures, 23 series can easy connect to any industrial port. Thirdly, 23 series can be customized to use for water, chemicals and food grade.
MORE FEATURES & BENEFITS
• Open flow up to 1.5gpm/5.6lpm
• Dry run capability
• Max Self-priming up to 5 feet/1.5m
• Waterproof grade IP54 with extra cover
• On-demand long life pressure switch
• Configurable reflux function
• Adapt to a variety of scenarios
• Multiple connector options
• By pass technology reduces cycling
• Extra button for easy control
• Ignition protected, CE, RoHS
