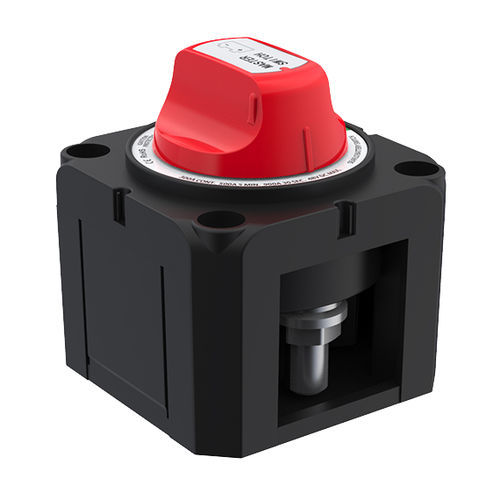

Selector battery switch SFCBS-300-203

Marine battery switch, battery isolation switch, yacht battery power-off switch, high current knob switch, battery selector switch Voltage：12V/24V/32V Amps：300-675A Position：2 Simultaneously switches two isolated battery banks or combines battery banks to all loads.Make before break contact design allows switching between battery banks without power interruption Tin-plated copper studs for maximum conductivity and corrosion resistance. Studs accept 3/8" (M10) ring terminals. One-piece terminal stud design never loosens over time. Isolating cover with three snap-off side pieces protects rear contacts and allows wire access in any direction. MORE FEATURES & BENEFITS • Switches a single battery to a single load group • Tin-plated copper studs for maximum conductivity and corrosion resistance • Studs accept 3/8" (M10) ring terminals • One-piece terminal stud design never loosens over time • Isolating cover with three snap-off side pieces protects rear contacts and allows wire access in any direction Regulatory • CE, RoHS, ISO 8846 • Meets all American Boat and Yacht Council (ABYC) requirements for battery switches • Meets UL 1500 and SAE J1171 external ignition protection requirements • IP66 – protected against powerful water jets
