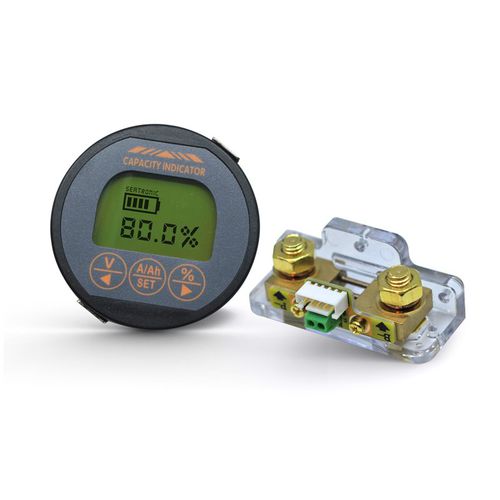

Marine indicator EGBMS0

monitoringdigitalfor battery

This manager is easy to install, thanks to its round format. It provides access to all the information needed to accurately monitor the status of the electrical system. It calculates the residual capacity and gives visibility on the voltage and current of the service fleet. An ergonomic system based on three buttons allows quick access to all useful information. Function - It gives access to all the useful information to follow precisely the state of the electrical system Available information - It calculates the residual capacity and gives visibility on the voltage and current of the service park Maximum measurable current - 100 A Maximum possible current - 200 A Dual voltage measurement - not available on this model Measurement accuracy (voltage and current) - +/- 1% Capacity of the service park - 1Ah to 999 Ah Consumption in standby - 0.6 mA Max consumption with backlight - 10 mA Screen size - 34 x 23 mm Mounting - 54mm hole Weight - Manager + shunt 280 gr
