Marine indicator EGBMS1

monitoringdigitalfor battery

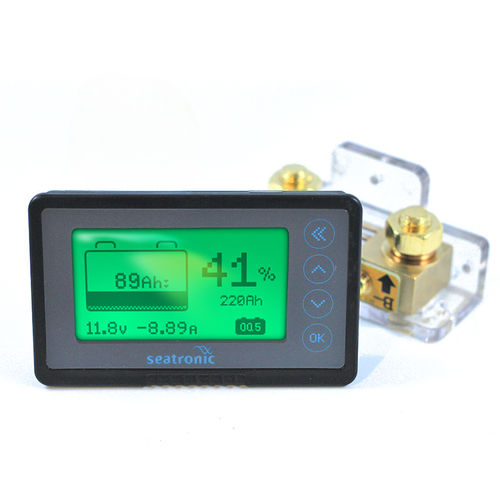

This set consists of two battery managers to accurately monitor the charge of two service battery banks. This new Seatronic battery manager is characterized by its accuracy and ease of use. Thanks to its large LCD screens (65*37 mm), all the useful parameters for a detailed view of two service battery banks are accessible at a glance. Function - Allows to follow precisely the residual capacity of two service battery banks and to visualize the incoming and outgoing current. In addition to having a clear visibility on the state of charge of the service battery bank, the manager is an excellent diagnostic tool. Visibility on the engine battery voltage. Available information - Service battery voltages, incoming and outgoing currents of the service fleets, residual capacities of the service fleets (in Ah and percentage), motor battery voltage, alarm signal. Configurable alarms - High voltage, low voltage and residual capacity (visual and sound alarms) Other - The manager keeps its information even when the system is not powered. Maximum measurable current - 350 A Maximum possible current - 500 A Measurement accuracy (voltage and current) - +/- 1% Capacity of the service park - 25Ah to 999 Ah Consumption in standby - 6 mA Max consumption with backlight - 18 mA Display size - 65 x 37 mm Panel cutout - 94 x 57 mm Weight - Manager 75 gr, shunt 250 gr
