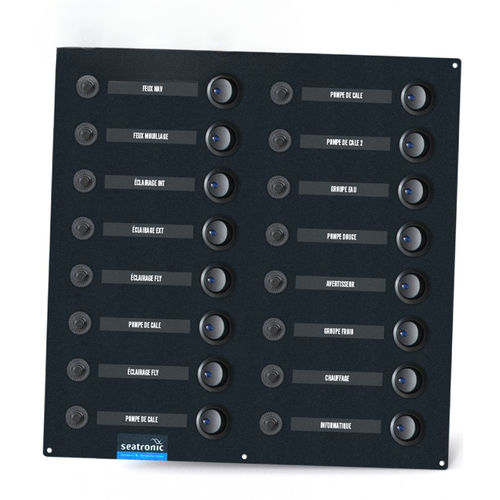

Boat switch panel ETA16

lightingLED

Seatronic electrical panels have been designed to protect your electrical installation in case of a fault. This protection is ensured, for each output, by a thermal circuit breaker rated from 3 to 15 Amps (to be determined at the time of order). An LED switch allows you to visualize the operation of each circuit. A label plate is supplied with the panel. Version - 16 single-pole circuits Function - Circuit control and protection. Voltage - 12 V or 24 V Type of circuit breaker - Thermal (from 3 to 15 A). Switch - Single pole with LED for monitoring the operation of the circuit. Operating temperature - From -20°C to 50°C Connections - 6.3 mm female clips Dimensions (H x W) - 246 mm x 240 mm Pre-wired - The panel is pre-wired Different distribution terminal block options are available The entire range has been designed to be modular, so the panels can be combined with each other to ensure the scalability of the installation. Furthermore, great care has been taken to ensure the quality of the cables and terminals used (reinforced terminals) in order to guarantee maximum reliability of the system. In addition to the panels, a set of terminal blocks fixed on DIN rail, in order to ensure an optimal distribution from each of the circuits is proposed. These terminal blocks are available in kit form or can be pre-wired in our Saint Malo workshop. In the case of the pre-wired version, the length of the bundle between the panel and the terminal blocks must be specified.
