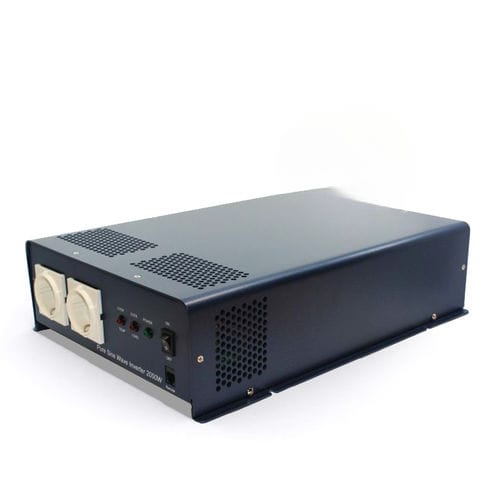

Voltage converter ECEPS242000

DCDCmarine

This pure sine converter is designed for intensive use and is characterized by its robustness. It is particularly suitable for powering a refrigerator, microwave or vacuum cleaner, for example, thanks to its high-quality pure sine output signal. Function - Voltage converter from 24 VDC to 230 VAC pure sine. Designed for professional and recreational applications. Power rating - 2000 Watts / 2200 Watts for 15 minutes Peak power - 4000 Watts for 1 sec. Input voltage - 24 VDC (from 20 to 33 VDC) Output voltage - 230 VAC +/- 3% OF POWER Output signal - Pure sine Frequency - 50 Hz +/- 1% of frequency Low voltage alarm - 20,5 VDC Connection - Terminal block for stripped cable (up to 35 mm²) Crimp sleeve on request Standby power consumption - <0.8 Amp Efficiency - 90 % Electrical protections - Short circuit protection IP protection - IP32 Dimensions - 415 x 283 x 100 mm Weight - 4 kg Main characteristics of this range of converters: What characterizes this range is the excellent quality of the output signal thanks to a harmonic distortion lower than 3%, and a stability in frequency. This makes it perfectly suited for intensive and continuous use. This new range, of industrial design, is adapted for a professional and demanding use. This range extends from 150 watts to 3000 watts and is available in 12 volts and 24 volts.
