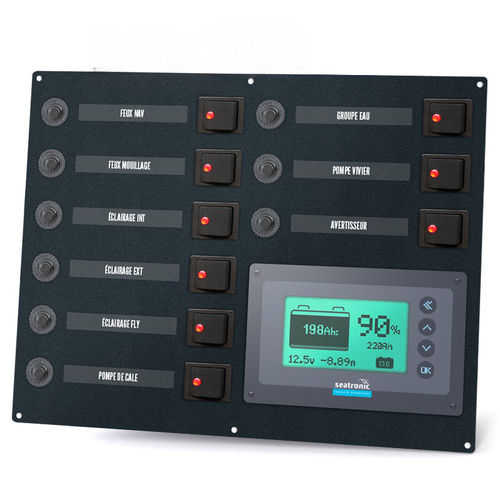

Boat switch panel ETA09GB

lightingfor bilge pumpsLED

This range of switchboards is particularly suited to metal boats (pleasure or steel), for which two-pole models are preferred. They use bipolar switches to prevent any risk of current leakage from the negative or positive side when the circuit is not powered. In the event of a fault in the electrical installation, a circuit breaker on the positive line disarms. Once the cause of the fault has been identified (e.g., a faulty connection or a problem with an appliance), the circuit-breaker can be reset and the installation is back in operation. Like our single-pole switchgear, our double-pole switches incorporate an LED to indicate the circuit's operating status. Each output is protected by a thermal circuit breaker rated from 3 to 15 amps (to be determined when ordering). These switchboards are 12/24 volt compatible, and can be purchased with a hard-wired terminal block to ensure successful installation and easy on-board maintenance. We also offer customizable models (visuals and dimensions) that will fit your boat perfectly. This panel includes a battery manager supplied with a 350 A shunt(see description under this link) A label plate is supplied with the panel. Version - 9 bipolar circuits Function - Circuit control and protection. Voltage - 12 V or 24 V Circuit breaker type - Thermal (3 to 15 A). Switch - Double-pole with LED for monitoring circuit operation. Operating temperature range - From -20°C to 50°C Connection - 6.3mm female clips Dimensions (H x W) - 200mm*280mm Pre-wired - The panel is delivered pre-wired Optional: with mounted terminal block
