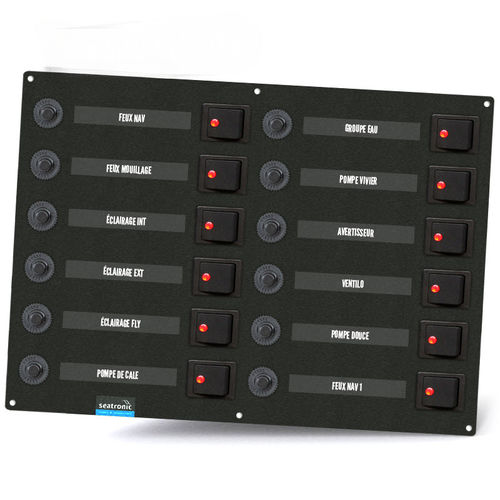

Boat switch panel ETA12B

lightingfor bilge pumpsLED

This range of panels is particularly suited to metal boats (pleasure or steel), for which two-pole models are preferred. They use bipolar switches to prevent any risk of current leakage from the negative or positive side when the circuit is not powered. In the event of a fault in the electrical installation, a circuit breaker on the positive line disarms. Once the cause of the fault has been identified (e.g., a faulty connection or a problem with an appliance), the circuit-breaker can be reset and the installation is back in operation. Like our single-pole switchgear, our double-pole switches incorporate an LED to indicate the circuit's operating status. Each output is protected by a thermal circuit breaker rated from 3 to 15 Amperes (to be determined when ordering). Like the single-pole range, these switchboards are 12/24 volt compatible, and are available with wiring kits to guarantee successful installation and easy on-board maintenance. We also offer customizable models (visuals and dimensions) that will fit your boat perfectly. A label plate is supplied with the panel. Version - 12 bipolar circuits Function - Circuit control and protection. Voltage - 12 V or 24 V Circuit breaker type - Thermal (3 to 15 A). Switch - Double-pole with LED for monitoring circuit operation. Operating temperature range - From -20°C to 50°C Connection - 6.3mm female clips Dimensions (H x W) - 200mm*280mm Pre-wired - The panel is delivered pre-wired Optional: with mounted terminal block The entire range has been designed to be modular, so the panels can be combined with each other to guarantee the scalability of the installation.
