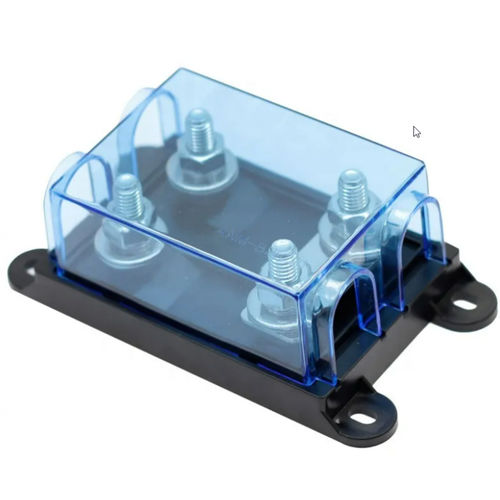

Fuse holder ECAFGANM2

Function - Protects installations (up to 32V) for medium to high power currents (40A to 150A). The ANM or MEGA format has the advantage of being more compact than the ANL format. This model allows you to have one input / 2 outputs (by placing the metal plate supplied between the two terminals) or two inputs, two outputs. The fuses are protected by a transparent cover to accommodate spare fuses. Compatible fuse type - ANM or Mega (50.8 mm centres)/M8 Voltage - Compatible with 12V and 24V systems (32V max) Fuse rating - 40A, 60A, 80A, 100A, 120A, 150A Material - PA66 (high mechanical strength) with flame retardant Dimensions: 126*68*43mm Weight: 0.21 kg
