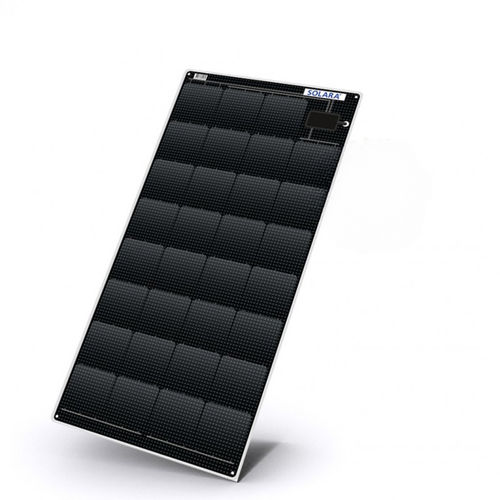

Rigid solar panel EDP1S515M34B
32 cells

rigid solar panel
rigid solar panel
Add to favorites
Compare this product


Characteristics

Structure
rigid
Number of cells
32 cells
Peak power (Wp)

115 W

Voltage at maximum power

19.7 V

Max power current (Imp)

5.9 A

Open circuit voltage (Voc)

23.3 V

Weight

3,600 g
(127 oz)

Length

1,120 mm
(44 in)

Width

545 mm
(21 in)

Thickness

4 mm
(0 in)

Description

VERY HIGH EFFICIENCY CELLS: Sunpower cells have a 20 to 30% higher efficiency than monocrystalline cells and have the added advantage of being extremely reliable (SunPower photovoltaic cells hold the world record for energy production). For example, SUNPOWER solar cells were selected to power the Solar Impulse solar aircraft. MANUFACTURING QUALITY: Thanks to its experience (these panels were launched in 1998), Solara offers a highly accomplished product designed to withstand all conditions. TRACEABILITY: Each module is individually tested under ISO conditions and has a unique serial number that cannot be altered to guarantee a certified level of quality. Function - Allows to recharge batteries efficiently from solar energy. These panels are designed to be fixed on the deck (gluing or thanks to the available holes) and are resistant to trampling and anti-skid. This panel has a rear junction box and allows a flush mounting on the deck. Cell type - Back contact Sunpower (efficiency 23.6%) Connection - Delivered with 3 meters of cable and an internal protection box (to be placed inside the boat) Panel material - Composite material. An aluminum plate is integrated into the composite material and strengthens the panel to make it resistant to foot traffic
