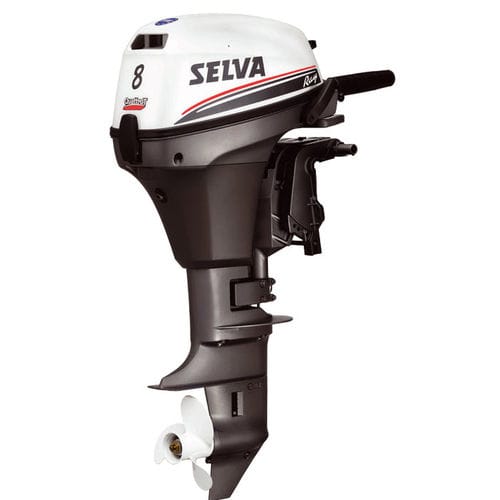

Outboard engine RAY 8

gasolineboatingwater-cooled

Recreation boating is even more fun if entrusted to a light, reliable motor that is easy to command and comes with simple operating systems. Ray 8 is all this and more - it is a safe outboard motor with reduced fuel consumption. Its large, convenient handles for trancruiser also make it an inseparable boating companion for unforgettable moments of relax and fun. Technical features and equipment Bore x Stroke (mm) - 56x43 N° Cylinders - 2 on line Induction - 1 carburettor Starting - Manual Fuel - Petrol (for specifications see the user manual) Fuel tank (L) - Separate 12 Lubrication - Forced (oil sump) Ignition - C.D.I. Micro-computer Ignition timing - Electronic Starting - Manual Alternator - Standard 12V/70W with regulator Cooling - Water cooled with pump-forced circulation Exhaust - Underwater through propeller Steering system - Bar with twist grip throttle control and steering friction adjustment Type of remote control box provided (for the version with remote control box) - Accessory, Single lever Trim adjustment - Manual (4 pos)with trim for navigation in shallow waters Direction reversal - Mechanical A-F-R Transmission Ratio - 13/27 Available shaft versions - C. - L. Standard propeller type - 3-bladed with built-in spring drive Weight basic version (kg.) - 39,9
