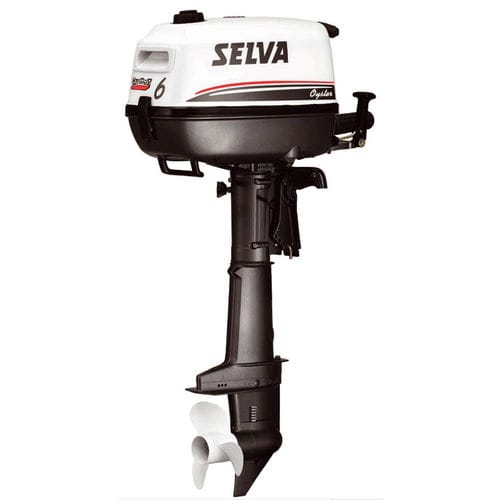

Outboard engine OYSTER 6

gasolineboatingwater-cooled

Another four-stroke champion to test. The single-cylinder 6 Hp Oyster is the only product in Europe with an OHC (Over Head Cam) structure, the overhead camshaft that reduces exhaust emissions to a minimum. It is a high performance, light, compact product with low fuel consumption. Clean as a 4-stroke and easy to manage as a 2-stroke. Technical features and equipment Bore x Stroke (mm) - 57 x 53 N° Cylinders - 1 Induction - 1 carburettor Starting - Manual Fuel - Petrol (for specifications see the user manual) Fuel tank (L) - Separate 12 or built-in 1,8 Lubrication - Forced with mechanical lobe-pump Ignition - C.D.I. Digital Ignition timing - Electronic Starting - Manual Alternator - Optional 12V/70W with regulator Cooling - Water cooled with pump-forced circulation Exhaust - Underwater through propeller Steering system - Bar with twist grip throttle control and steering friction adjustment Trim adjustment - Manual (4 pos) with trim for navigation in shallow waters Direction reversal - Mechanical A-F-R + 360° shaft rotation Transmission ratio - 13/30 Available shaft versions - C. - L. Standard propeller type - 3-bladed with built-in spring drive Weight basic version (Kg) - 27
