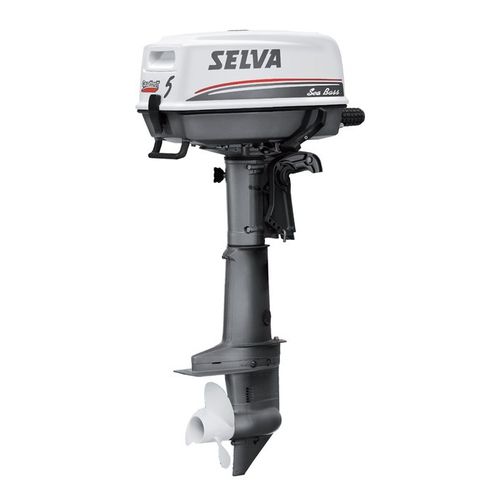

Outboard engine SEA BASS 5

gasolineboatingwater-cooled

New motor 2012, this single cylinder 118 cc combines brilliantly the demands of lightness and performance. The innovative intake system provides to the motor substantial torque keeping extremely reduced consumption. The lubrication oil injection in the air intake makes it extremely convenient in handling and storage. Technical features and equipment Bore x Stroke (mm) - 56 x 48 N° Cylinders - 1 Induction - 1 carburettor Starting - Manual Fuel - Petrol (for specifications see the user manual) Fuel tank (L) - Integrated 1,6 with connection for external tank Lubrication - Automatic oil injection into fuel Ignition - C.D.I. Digital Ignition timing - Electronic Starting - Manual Alternator - Optional 12V/70W with regulator Cooling - Water cooled with pump-forced circulation Exhaust - Underwater through propeller Steering system - Bar with twist grip throttle control and steering friction adjustment Trim adjustment - Manual (4 pos) with trim for navigation in shallow waters Direction reversal - Mechanical A-F-R + 360° shaft rotation Transmission ratio - 13/30 Available shaft versions - C. - L. Standard propeller type - 3-bladed with built-in spring drive Weight basic version (Kg) - 23
