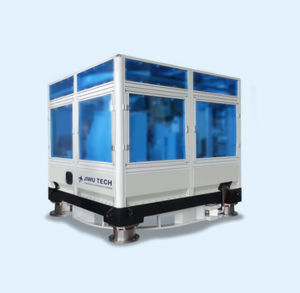

Gyroscopic stabilizer JW-10

for boats

For Boats: About 65'(up to 40 tons) Weight: 640 kg±5% (1410 lbs±5%) Dimensions: 936*936*692 mm (36.9*36.9*27.2 inches) Active Control The self-adaptive control strategy allows the gyro stabilizer to work effectively under any sea condition. Power Saving The ceramic rolling element allows the gyro to spin faster, consuming less power. Sealed Design The core components are completely isolated from the marine environment. Duo-Cooling System An effective duo-cooling system enables the gyro stabilizer to work steadily. JW-10 For Boats About 65’(up to 40 tons) Weight 640 kg±5% (1410 lbs±5%) Dimensions 936*936*692 mm (36.9*36.9*27.2 inches) Rated Speed 8000 RPM Angular Momentum at Rated RPM 10000 N-M-S Anti-Rolling Torque at Rated RPM 31500 N-M Spool-up Time to Rated RPM 50 min Spool-up Time to Stabilization (70% Rated RPM) 30 min Spool-up Power 3000 W Operating Power 2000 W - 3000 W AC Input AC220V，50/60HZ Sea Water Supply to Heat Exchanger 20 LPM Ambient Air Temprature -20-60 ℃ Noise Output 68 - 72 dB
