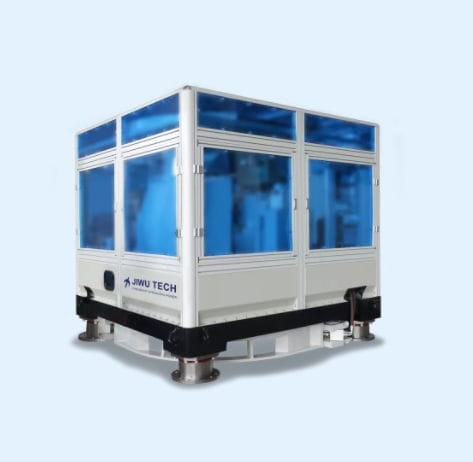

Gyroscopic stabilizer JW-50

for boats

For Boats: About 100' (up to 200 tons) Weight: 2548 kg±5% (5617 lbs±5%) Dimensions: 1550*1550*1415 mm (61.0*61.0*55.7 inches) Active Control The self-adaptive control strategy allows the gyro stabilizer to work effectively under any sea condition. Power Saving The ceramic rolling element allows the gyro to spin faster, consuming less power. Sealed Design The core components are completely isolated from the marine environment. Duo-Cooling System An effective duo-cooling system enables the gyro stabilizer to work steadily. JW-50 For Boats About 100’(up to 200 tons) Weight 2548 kg±5% (5617 lbs±5%) Dimensions 1550*1550*1415 mm (61.0*61.0*55.7 inches) Rated Speed 3000 RPM Angular Momentum at Rated RPM 50K N-M-S Anti-Rolling Torque at Rated RPM 157K N-M Spool-up Time to Rated RPM 60 min Spool-up Time to Stabilization (70% Rated RPM) 30 min Spool-up Power 18 KW Operating Power 10 KW - 18 KW AC Input AC380V, Three Phase, 50/60HZ Sea Water Supply to Heat Exchanger 50 LPM Ambient Air Temprature -20-60 ℃ Noise Output 70 - 75 dB
