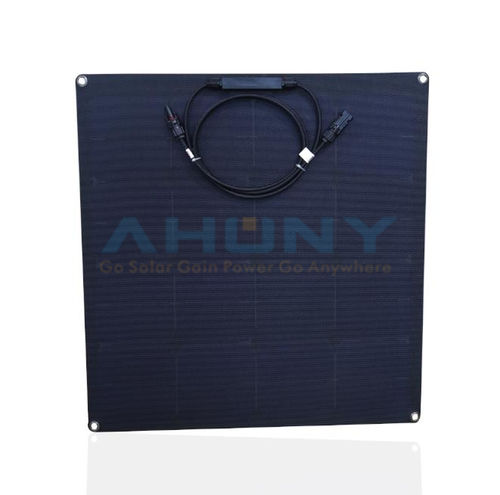

Semi-flexible solar panel eGo P50w
for boats

semi-flexible solar panel
semi-flexible solar panel
Add to favorites
Compare this product


Characteristics

Structure
semi-flexible
Other characteristics
for boats
Peak power (Wp)

50 W

Voltage at maximum power

18.6 V

Max power current (Imp)

2.7 A

Open circuit voltage (Voc)

22.3 V

Short circuit current (Isc)

2.9 A

Weight

1.5 kg
(3.3 lb)

Length

540 mm
(21 in)

Width

580 mm
(23 in)

Thickness

3 mm
(0 in)

Description

eGo P50w is suitable for RV,the voltage is 18V which is better for 12v battery. PCB backsheet more rigid than regular ones; Back contact solar cells,efficienty is up to 23.7%; Resilient,thin,light and aerodynamic design; ETFE surface,more weather resistance; Waterproof Jbox that is full of silicon gel; Customize is acceptable. Product Name - Semi-Flexible Solar Panel Maximum Power[Wp] - 50 Solar Cell - SunPower Maxeon Gen III Back Contact Cell Cell Array[Pcs] - 4*8 Cell Efficiency - 22.6% Size[mm] - 540x580x3 Max Power Voltage Vmp[V] - 18.56 Max Power Current Imp[A] - 2.7 Open Circuit Voltage Voc[V] - 22.27 Short Circuit Current Isc[A] - 2.9 Net.Weight[kg] - 1.5 NOCT[ - 45±2 Operating Temperature[ - -40/+85 Temperature Coefficient Pmax[%/ - -0.3 Temperature Coefficient Voc[[%/ - -1.74mV Temperature Coefficient Isc[[%/ - 0.05 Maximum System Voltage[V] - 100 V Maximum Reverse Current[V] - 10A Certification - CE ROHS Surface/Backsheet - ETFE/PCB Cables and Connectors - Jbox IP65,0.9m cable and 1 pair of MC4 connector Standard Test Conditions - STC: 1000W/m², AM 1.5g and cell temp 25°C
