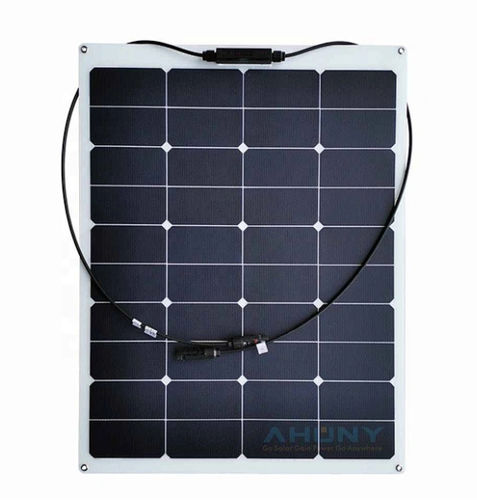

Semi-flexible solar panel eGo S75w
monocrystalline silicon40 cellsfor boats

Semi-flexible solar panel - eGo S75w - SHENZHEN AHONY POWER CO.,LTD - monocrystalline silicon / 40 cells / for boats
Semi-flexible solar panel - eGo S75w - SHENZHEN AHONY POWER CO.,LTD - monocrystalline silicon / 40 cells / for boats
Semi-flexible solar panel - eGo S75w - SHENZHEN AHONY POWER CO.,LTD - monocrystalline silicon / 40 cells / for boats - image - 2
Semi-flexible solar panel - eGo S75w - SHENZHEN AHONY POWER CO.,LTD - monocrystalline silicon / 40 cells / for boats - image - 3
Semi-flexible solar panel - eGo S75w - SHENZHEN AHONY POWER CO.,LTD - monocrystalline silicon / 40 cells / for boats - image - 4
Add to favorites
Compare this product


Characteristics

Structure
semi-flexible
Material
monocrystalline silicon
Number of cells
40 cells
Other characteristics
for boats
Peak power (Wp)

75 W

Voltage at maximum power

24.5 V

Max power current (Imp)

3.1 A

Open circuit voltage (Voc)

28.9 V

Short circuit current (Isc)

3.3 A

Weight

1.1 kg
(2.4 lb)

Length

705 mm
(28 in)

Width

540 mm
(21 in)

Thickness

3 mm
(0 in)

Description

Our marine solar panels flexible are the perfect choice for powering up your boat or yacht with clean and renewable energy. With a flexible and lightweight design, these panels can easily be installed on curved surfaces and are highly resistant to salt water and harsh marine environments. Cell size:125mmx125mm Panel Efficiency:23.7% Certificate:CE ROHS, CE ROHS ISO style:thin film ETFE flexible Application:boat yacht attic fan deck rv roof freezing car roof ETFE MATERIAL:Different from PET solar panel,the transmitance of ETFE material as high as 95%,better at high temperature resistance,easier to clean HIGH EFFICIENCY: Sunpower solar cell,the conversion up to 23.5%,with excellent weak light sensitivity,the internal blocking diode which prevents reverse current drain at night GOOD BENDABILITY: The solar panel can be curved to a maximum 30 degree arc,allowing to be mounted on an RV, boat, cabin, tent, car, trucks, trailers or any other irregular surface SUPERIOR DURABILITY: This solar panel is made of advanced water resistant material,the junction box is sealed and waterproof,the copper wire is protected by 3-layers plastic film EASY INSTALLATION:Only 0.1 in thick and weighs only4.0 lbs,this solar panel is easy to transport,hang,and remove,4 stainless eyelets at the edges for easy installation;can be easily affixed by adhesives,silicon glues,double sticky tape,zip ties or velcro the flexible solar panel 70w are use for solar boat yacht attic fan deck rv roof freezing car roof
