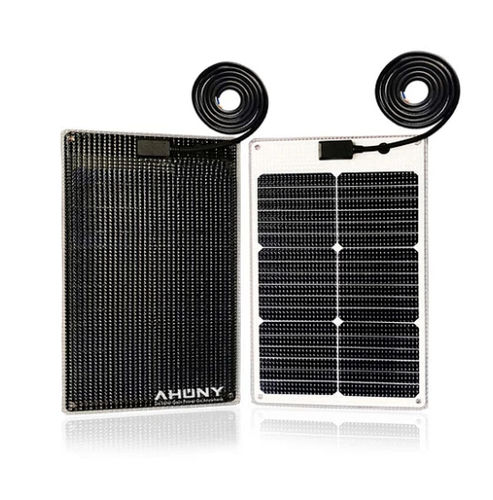

Semi-flexible solar panel eMarvel 20w
monocrystalline silicon32 cellsfor boats

semi-flexible solar panel
semi-flexible solar panel
semi-flexible solar panel
semi-flexible solar panel
semi-flexible solar panel
Add to favorites
Compare this product


Characteristics

Structure
semi-flexible
Material
monocrystalline silicon
Number of cells
32 cells
Other characteristics
for boats
Peak power (Wp)

20 W

Voltage at maximum power

18.6 V

Max power current (Imp)

1.1 A

Open circuit voltage (Voc)

21.9 V

Short circuit current (Isc)

1.2 A

Weight

1.1 kg
(2.4 lb)

Length

385 mm
(15 in)

Width

350 mm
(14 in)

Thickness

5 mm
(0 in)

Description

The 20W small walkable solar panel is the perfect solution for boat, camping, and yacht marine enthusiasts who want to harness the power of the sun. These solar panels are designed to be lightweight, sturdy, and walkable, making them ideal for use on boats and yachts. Power tolerance[ - ±5% NOCT[ - 45±2 Operating Temperature[ - -40/+85 Temperature Coefficient Pmax[%/K] - -0.3 Temperature Coefficient Voc[[%/K] - -1.74mV Temperature Coefficient Isc[[%/K] - 0.05 Maximum System Voltage[V] - 100 V Maximum Reverse Current[V] - 10A Flame retardancy - UL94 VTM-0 Certification and test - CE,ROHS,SGS,IEC,85°C& 85% humidity test Maximum bend radius(θ) - 5° Cables and Connectors - APJB010,2m dual cores cable 2.5mm2 bare at end Standard Test Conditions - STC: 1000W/m², AM 1.5 and cell temp 25°C Other notes - round corner R10,with eyelets
