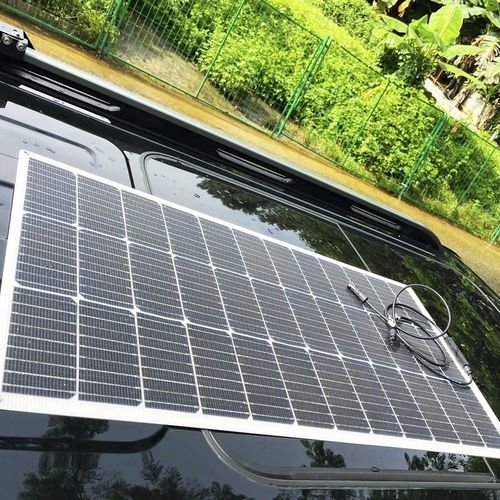

Semi-flexible solar panel BSFH-100W
monocrystalline silicon33 cellsmarine

Semi-flexible solar panel - BSFH-100W - SHENZHEN AHONY POWER CO.,LTD - monocrystalline silicon / 33 cells / marine
Semi-flexible solar panel - BSFH-100W - SHENZHEN AHONY POWER CO.,LTD - monocrystalline silicon / 33 cells / marine
Semi-flexible solar panel - BSFH-100W - SHENZHEN AHONY POWER CO.,LTD - monocrystalline silicon / 33 cells / marine - image - 2
Semi-flexible solar panel - BSFH-100W - SHENZHEN AHONY POWER CO.,LTD - monocrystalline silicon / 33 cells / marine - image - 3
Semi-flexible solar panel - BSFH-100W - SHENZHEN AHONY POWER CO.,LTD - monocrystalline silicon / 33 cells / marine - image - 4
Semi-flexible solar panel - BSFH-100W - SHENZHEN AHONY POWER CO.,LTD - monocrystalline silicon / 33 cells / marine - image - 5
Add to favorites
Compare this product


Characteristics

Structure
semi-flexible
Material
monocrystalline silicon
Number of cells
33 cells
Other characteristics
marine, light, custom
Peak power (Wp)

100 W

Voltage at maximum power

19.1 V

Max power current (Imp)

5.2 A

Open circuit voltage (Voc)

22.4 V

Short circuit current (Isc)

5.4 A

Weight

1.7 kg
(3.7 lb)

Length

540 mm
(21 in)

Width

980 mm
(39 in)

Thickness

2 mm
(0 in)

Description

AHONY Semi flexlble solar panel makes by crystalline silicon solar cells including monocrystalline HJT cell,back contact cell,with different backsheet surface and backsheet material,re-orgainize from ETFE,PET,fibreglass backsheet. This panel belongs to eGo SM Series,eGo SM use PERC or HJT cells,cell efficiency range from 23.5% to 25.8%,economical solar panels power range for same application.It usually use on boat's bimini roof. You can also refer to other series: eGo s uses back contact cell,efficiency is high at 24.4%,better weak light performance and little power loss when walk on it,thespeclal inner copper foundatlon makes cell solid and duarable thanother panels.max bend angle 60degree,suitable for marine,yacht surface,bimini,fish boat,rv roof,golf car,electric bus etc. eGo P use fibreglass,max bend 10degree,for application that do not bend like foldable solar panel,shutters,backpack usb solar charger etc.lt's half finished solar modules to be integrated to consumer electronic products like portable charger, bluetooth audio,CCTV camera,garden light,floating light,marine products etc.Also for industrial use like mining,oil.
