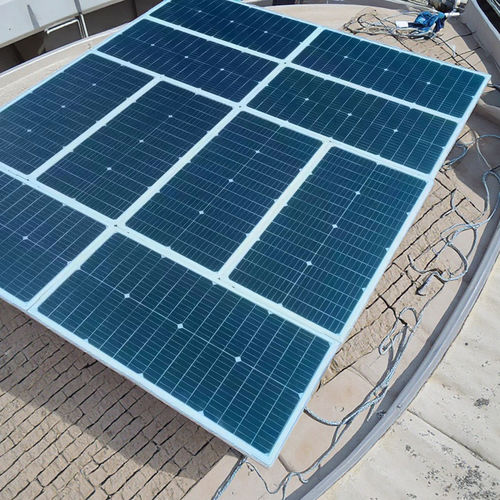

Rigid solar panel eMarvel M60W

monocrystalline silicon32 cellsfor boats

Key Advantage: - 1.small size,design as many power as possible,easy to transport and replace,maintenance; 2.Leading brand Longi cell 25.8% for 80w. 3.each panel have 2bypass diodes,increase max 40% power under shading situation; 4.walkable on deck flat surface,anti-skid surface,self cleaning; 5.simple cabling,IP68 connection. Model No. - eMarvel M60W Product Name - Maximum Power[Wp] - 60 Solar Cell - PERC solar cell Cell Array[Pcs] - 2*16pcs,182*45.5mm Cell Efficiency - 23.50% Size[mm] - 405*803*12 Max Power Voltage Vmp[V] - 19.20 Max Power Current Imp[A] - 3.13 Open Circuit Voltage Voc[V] - 22.46 Short Circuit Current Isc[A] - 3.38 Net.Weight[kg] - 2.85 Power tolerance[ - ±3% NOCT[ - 45±2 Operating Temperature[ - -40/+85 Temperature Coefficient Pmax[%/ - -0.252 Temperature Coefficient Voc[[%/ - -0.227 Temperature Coefficient Isc[[%/ - 0.031 Maximum System Voltage[V] - 1000 V Certification - CE ROHS Surface/Backsheet - ETFE+AP2+rigid material+3M tape back Maximum bend radius(θ) - 0° Cables and Connectors - Jbox IP68 on back+0.2m+MC4 Standard Test Conditions - STC: 1000W/m², AM 1.5 and cell temp 25°C Other notes - round corner R10
