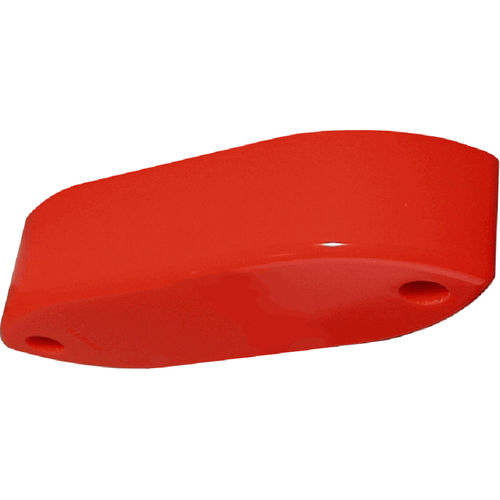

Temperature sensor 38/200 Combi C

acousticfor boatsdepth sounder

The Simrad 38/200 Combi C is a 38 and 200 kHz dual frequency single beam transducer mainly designed for fish finding applications. The 38/200 Combi C combines two transducers and one temperature sensor in a single housing. The transducer is streamlined, and designed to be mounted under the hull. Flush mounting is not recommended. A fairing must be designed to fit between the top of the transducer surface and the hull. The fairing shall offer the necessary inclination angle, and provide space for the cable service loop. The fairing must cover the entire top surface of the transducer house. Supporting only at each end of the transducer may cause damage to the transducer if subjected to slamming. The transducer housing is provided with two holes for mounting bolts. These shall penetrate the transducer and fasten it to the fairing. The transducer cable penetrates the hull using a stuffing tube and a cable gland. KEY SPECIFICATIONS Frequency: 38 and 200 kHz Circular beamwidth: 13 degrees (38 kHz) and 7 degrees (200 kHz) Cable length: 10 metres Weight (in air, with cable): 6.5 kg TECHNICAL SPECIFICATIONS See the datasheet. END-USER DOCUMENTATION AND INSTALLATION DRAWINGS Open page ORDER INFORMATION Part number: KSV-202192
