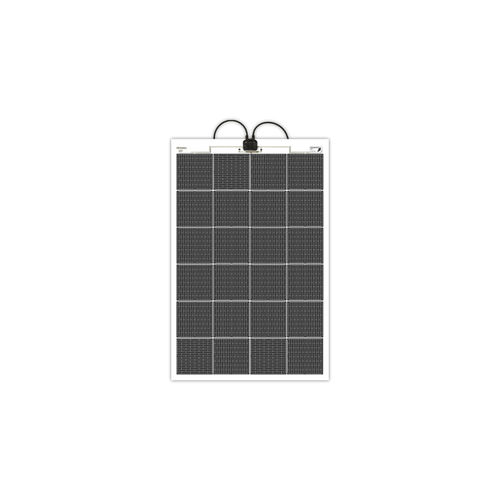

Flexible solar panel SR 24

for boats

The monocrystalline high efficiency SR cells are sandwiched by two patented metallic grids. The metallic grid on the front of the cell is specifically designed to maximize the current harvesting. On the rear of the cell a second grid provides extreme resistance to cracks and over-bending. The grids essentially form a double shield that acts as a conducting reinforcement to the solar cell. Extreme crack and bend tolerance are built in, providing a guarantee of high efficiency and unmatched durability. Power 120 W Weight 1.7 Kg Lenght 1063 mm Width 694 mm Thickness 2 mm Cells no. 24 Voc 16 V Vmp 12.7 V Isc 9.8 A Imp 9.5 A
