Inboard engine MINI-17
dieselboatingprofessional vessel

Inboard engine - MINI-17 - Solé Advance - diesel / boating / professional vessel

Inboard engine - MINI-17 - Solé Advance - diesel / boating / professional vessel - image - 2

Inboard engine - MINI-17 - Solé Advance - diesel / boating / professional vessel - image - 3

Inboard engine - MINI-17 - Solé Advance - diesel / boating / professional vessel - image - 4

Inboard engine - MINI-17 - Solé Advance - diesel / boating / professional vessel - image - 5

Inboard engine - MINI-17 - Solé Advance - diesel / boating / professional vessel - image - 6

Inboard engine - MINI-17 - Solé Advance - diesel / boating / professional vessel - image - 7

Inboard engine - MINI-17 - Solé Advance - diesel / boating / professional vessel - image - 8

Add to favorites

Compare this product

Characteristics

Type: inboard
Power source: diesel
Market: boating, professional vessel
Technology: mechanical fuel injection, atmospheric
Engine type: in-line
Other characteristics: 4-stroke
Power: 16 ch
(16 hp)
Displacement: 635 cm³
(21 US fl oz)
Number of cylinders: 2 unit
Engine speed: 3,600 rpm
(22,619 rad.min-1)
Consumption: 5 l/h
(1 us gal/h)
Max. installation angle: 25 °
Bore: 76 mm
(3 in)
Stroke: 70 mm
(2.8 in)
Compression ratio: 23 unit
Length: 612 mm
(24 in)
Width: 484 mm
(19 in)
Height: 542 mm
(21 in)
Weight: 95 kg
(209 lb)

Description

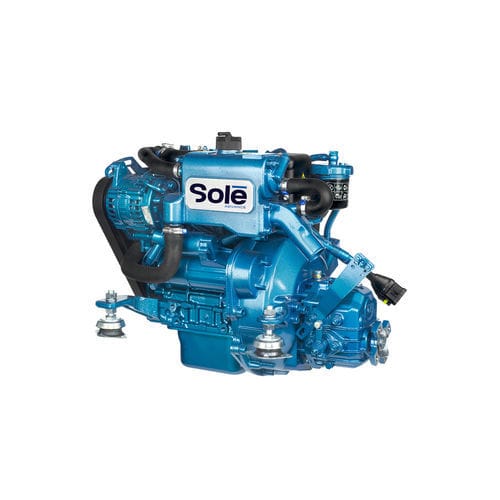

The MINI-17 is a twin-cylinder diesel boat engine with mechanical injection, that performs 16 hp at 3.600 rpm with 635 cc, manufactured with a Mitsubishi base engine. It's a very reliable and easy maintenance engine. The heat exchanger its made of one cast piece and weldless which minimizes the risk of leakage, and its oversized raw water pump ensures the water flow required for engine cooling. It is specially designed for sailboats and small fishing boats. There are many kits available to ease the repowering reducing the installation costs, also it offers different configurations and it complies with RCD II and BSO II.
