Professional vessel engine SM-103
inboardpropulsiondiesel

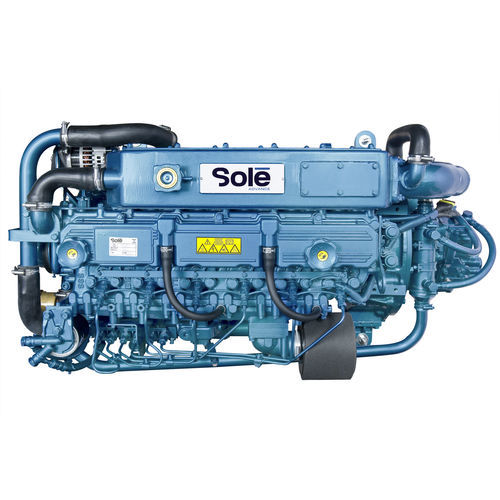

Professional vessel engine - SM-103 - Solé Advance - inboard / propulsion / diesel

Professional vessel engine - SM-103 - Solé Advance - inboard / propulsion / diesel - image - 2

Professional vessel engine - SM-103 - Solé Advance - inboard / propulsion / diesel - image - 3

Professional vessel engine - SM-103 - Solé Advance - inboard / propulsion / diesel - image - 4

Professional vessel engine - SM-103 - Solé Advance - inboard / propulsion / diesel - image - 5

Professional vessel engine - SM-103 - Solé Advance - inboard / propulsion / diesel - image - 6

Professional vessel engine - SM-103 - Solé Advance - inboard / propulsion / diesel - image - 7

Professional vessel engine - SM-103 - Solé Advance - inboard / propulsion / diesel - image - 8

Add to favorites

Compare this product

Characteristics

Type: inboard, propulsion
Power source: diesel
Market: professional vessel
Technology: mechanical fuel injection, atmospheric
Engine type: in-line
Rotation direction: left hand
Pollution control standard: Tier 1
Other characteristics: 4-stroke
Power: 103 ch
(103 hp)
Displacement: 4,996 cm³
(169 US fl oz)
Number of cylinders: 6 unit
Engine speed: 2,500 rpm
(15,708 rad.min-1)
Max. installation angle: 15 °
Bore: 94 mm
(3.7 in)
Stroke: 120 mm
(4.7 in)
Length: 1,292 mm
(51 in)
Width: 676 mm
(27 in)
Height: 768 mm
(30 in)
Weight: 408 kg
(899 lb)

Description

The 6 cylinder marine diesel engine SM-103 on a Mitsubishi block, performs 103 hp at 2.500 rpm with a 4.996 cc displacement. It is naturally aspirated and mechanical injection engine very versatile, which offers durability, low vibrations and reliability. It has a high torque at low rpm which makes the SM-103 the perfect partner for fishing boats with semi-displacement and displacement hull, specially indicated for continuous service. This is a unique engine on this range. Availability of multiple kits and configurations for the most demanding boats.
