Inboard engine MINI-29
dieselboatingprofessional vessel

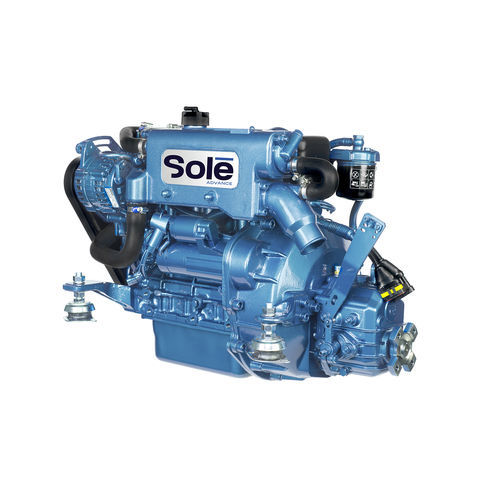

Inboard engine - MINI-29 - Solé Advance - diesel / boating / professional vessel

Inboard engine - MINI-29 - Solé Advance - diesel / boating / professional vessel - image - 2

Inboard engine - MINI-29 - Solé Advance - diesel / boating / professional vessel - image - 3

Inboard engine - MINI-29 - Solé Advance - diesel / boating / professional vessel - image - 4

Inboard engine - MINI-29 - Solé Advance - diesel / boating / professional vessel - image - 5

Inboard engine - MINI-29 - Solé Advance - diesel / boating / professional vessel - image - 6

Inboard engine - MINI-29 - Solé Advance - diesel / boating / professional vessel - image - 7

Inboard engine - MINI-29 - Solé Advance - diesel / boating / professional vessel - image - 8

Add to favorites

Compare this product

Characteristics

Type: inboard
Power source: diesel
Market: boating, professional vessel
Technology: mechanical fuel injection, atmospheric
Engine type: in-line
Other characteristics: 4-stroke
Power: 27 ch
(27 hp)
Displacement: 952 cm³
(32 US fl oz)
Number of cylinders: 3 unit
Engine speed: 3,600 rpm
(22,619 rad.min-1)
Consumption: 8 l/h
(2 us gal/h)
Max. installation angle: 25 °
Bore: 76 mm
(3 in)
Stroke: 70 mm
(2.8 in)
Compression ratio: 22 unit
Length: 710 mm
(28 in)
Height: 543 mm
(21 in)
Weight: 118 kg
(260 lb)

Description

The MINI-29 is 3 cylinders, mechanical injection diesel engine for boats ultra-compact which performs 27 hp at 3.600 rpm and 952 cc, easy maintenance. The base engine is manufactured by Mitsubishi which guarantees a very reliable engine. As all the Solé Diesel's engines the MINI-29 is manufactured with a water cooler made of one piece cast without any welding to minimise the risk of leakage, and its oversized raw water pump ensures the water flow required for engine cooling. It is an engine mainly designed for sailboats and small fishing boats, with special feets available for repowering, this kit adapts the size of the new engine with the old one, that minimize the installation cost. Moreover, it has available customizations such as filters relocation, raw water pump on the front side, dry exhaust... It meets with the RCD II and BSO II.
