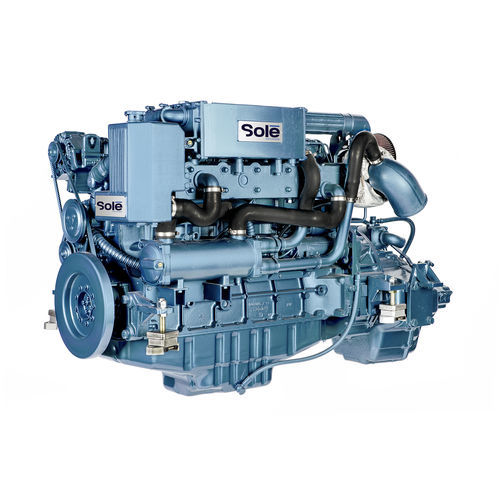

Ship engine SDZ-280
inboardpropulsiondiesel

Add to favorites

Compare this product

Characteristics

Type: inboard, propulsion
Power source: diesel
Market: professional vessel, for ships
Technology: turbocharged, mechanical fuel injection
Engine type: in-line
Rotation direction: left hand
Pollution control standard: Tier 1
Other characteristics: 4-stroke
Power: 271.7 ch
(271.7 hp)
Displacement: 7,146 cm³
(242 US fl oz)
Number of cylinders: 6 unit
Engine speed: 1,600 rpm, 2,300 rpm
(10,053 rad.min-1, 14,451 rad.min-1)
Max. installation angle: 10 °
Bore: 108 mm
(4.3 in)
Stroke: 130 mm
(5.1 in)
Length: 1,610 mm
(63 in)
Width: 712 mm
(28 in)
Height: 974 mm
(38 in)
Weight: 680 kg
(1,499 lb)

Description

The SDZ-280 is the last and most powerful engine from the DEUTZ range. This is a 6 cylinder engine turbocharged and intercooler with mechanical injection. It has been assembled on a DEUTZ engine block which performs 272 hp at 2.300 rpm. This is a high performance engine for commercial boats which demand an engine able to work on continuous service. Its profile makes it perfect for semi-displacement and displacement boats such as; fishing boats, passenger boats, tug boats, catamarans, trawler boats. The 6 cylinders provides a very smoothly navigation free of vibrations but at the same time, is delivering a high torque at low rpm, with the lowest fuel consumption. As a mechanical engine, it has a very simple maintenance and great reliability. It has configurations available to satisfy the most demanding needs, as well as IMO MARPOL TIER II.
