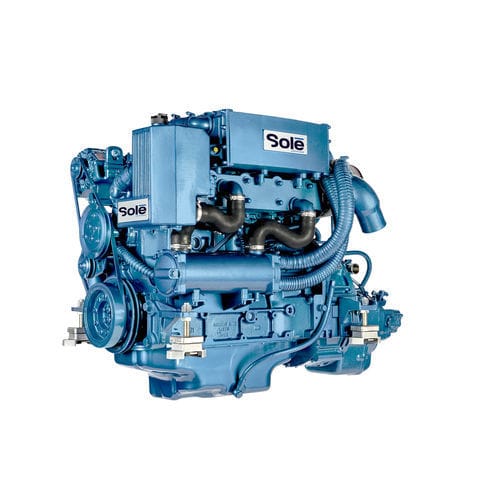

Inboard engine SDZ-165
dieselprofessional vesselturbocharged

Add to favorites

Compare this product

Characteristics

Type: inboard
Power source: diesel
Market: professional vessel
Technology: turbocharged, mechanical fuel injection
Engine type: in-line
Rotation direction: left hand
Other characteristics: 4-stroke
Power: 160.3 ch
(160.3 hp)
Displacement: 4,764 cm³
(161 US fl oz)
Number of cylinders: 4 unit
Engine speed: 2,300 rpm
(14,451 rad.min-1)
Max. installation angle: 10 °
Bore: 108 mm
(4.3 in)
Stroke: 130 mm
(5.1 in)
Length: 1,218 mm
(48 in)
Width: 710 mm
(28 in)
Height: 936 mm
(37 in)
Weight: 555 kg
(1,224 lb)

Description

The SDZ-165 is the first one from the Solé Diesel DEUTZ range. This is a 4 cylinder, mechanical injection, turbocharged and intercooler marine engine, assembled on DEUTZ block. This engine performs 160 hp at 2.300 rpm with 4.764 cc displacement. This is the perfect partner for commercial boats which requires and engine able to work on continuous duty. Its profile makes it suitable for semi-displacement and displacement boats, fishing boats, passenger boats, power boats, etc. The marinization has been fully designed and produced at Solé Diesel plant. The heat exchanger is a single piece with no welding parts to avoid leakage. The raw water pump it's been oversized in order to ensure the necessary water flow to refrigerate the engine. The SDZ-165 has a wide range of configurations available to satisfy the needs from the most demanding sailors.
