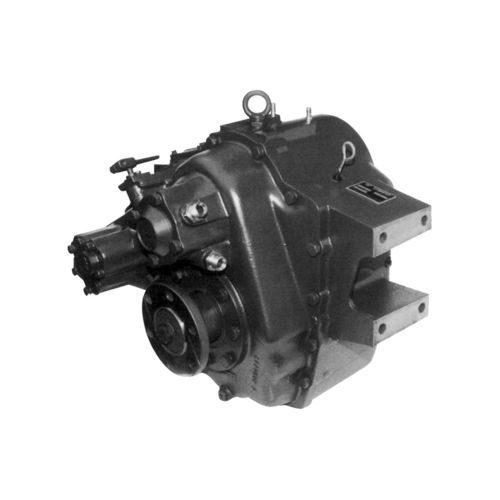

Ship reduction gearbox TM265A

marinemotortransmission

The TM265A marine transmission is equipped with hydraulically activated multiple disk clutches. The clutches and gears have been designed to transmit full power, with the same transmission ratio in forward and reverse. The 7º angle of depression of the output shaft makes it possible to correctly install the marine engine-transmission set on planning or semi-displacement hulls. Engine - Manufacturer - Output º - Red. SDZ-165 - Technodrive - 2.00:1 SDZ-205 - Technodrive - 2.00:1 SDZ-280 - Technodrive - 1.44:1 Oil - SAE 15W40 Oil cap. - 6,6 L Max. Oper. º - 15 º Output º - 7 º Weight - 165 Kg Max. Temp - 95 ºC Gearbox type - INCLINADO Reduction ratios Forward - Reverse 1.44:1 - 1.44:1 2.00:1 - 2.00:1 2.30:1 - 2.30:1
