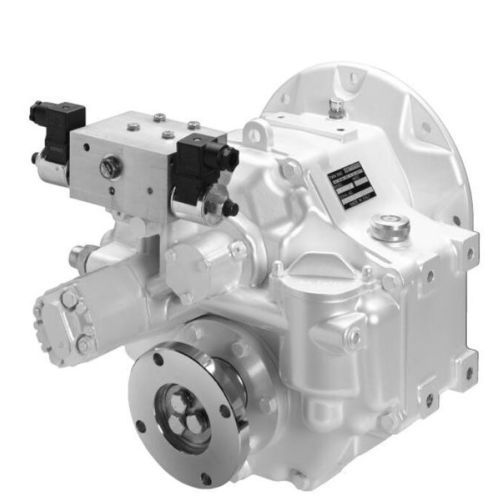

Marine reduction gearbox TM485A1
for shipsenginetransmission

Marine reduction gearbox - TM485A1 - Solé Advance - for ships / engine / transmission
Marine reduction gearbox - TM485A1 - Solé Advance - for ships / engine / transmission
Add to favorites
Compare this product


Characteristics

Application domain
for ships, marine
Applications
engine, transmission
Other characteristics
with hydraulic clutch

Description

The TM485A marine transmission is equipped with hydraulically activated multiple disk clutches. The clutches and gears have been designed to transmit full power, with the same transmission ratio in forward and reverse. The 8º angle of depression of the output shaft makes it possible to correctly install the marine engine-transmission set on planning or semi-displacement hulls. Engine - Manufacturer - Output º - Red. SM-103 - Technodrive - 2.40:1 SM-82 - Technodrive - 1.51:1 SM-94 - Technodrive - 1.51:1 Oil - SAE 15W40 Oil cap. - 2,7 L Max. Oper. º - 15 º Output º - 8 º Weight - 36 Kg Max. Temp - 95 ºC Gearbox type - INCLINADO Reduction ratios Forward - Reverse 1.51:1 - 1.51:1 2.09:1 - 2.09:1 2.40:1 - 2.40:1
