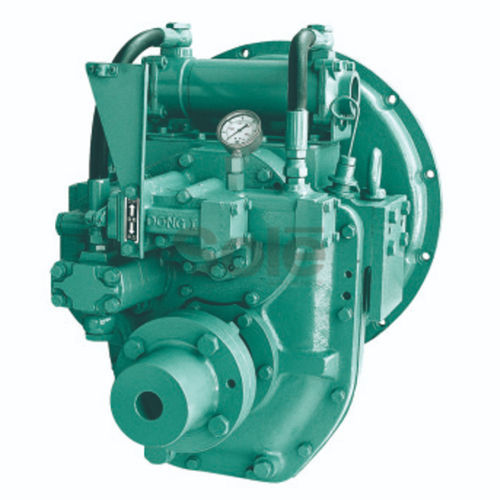

Marine reduction gearbox DMT-50A
for shipsenginetransmission

Marine reduction gearbox - DMT-50A - Solé Advance - for ships / engine / transmission
Marine reduction gearbox - DMT-50A - Solé Advance - for ships / engine / transmission
Add to favorites
Compare this product


Characteristics

Application domain
for ships, marine
Applications
engine, transmission
Other characteristics
with hydraulic clutch, two-stage

Description

The Dong-i DMT50A marine transmission features an advanced and versatile design, suitable for a broad range of vessels. Standard equipment includes: Bell Housing (SAE 1, 2, 3, 4), Rubber Block Coupling (10"), Dual Stage Coupling (14" 11.5"), Propeller Coupling, Reamer Bolt, Manual Control Valve, Oil Cooler, and Cable Bracket. Options available include Manual Trolling Valve, Electronic Control Valve (12V, 24V), combination of both valves, and Mounting Brackets (Flat type, L type), allowing for complete customization to meet diverse maritime needs. Engine - Manufacturer - Output º - Red. MINI-74 - Dong-i - 0 - 3.12:1 SM-103 - Dong-i - 0 - 3.45:1 Oil - SAE 30 Oil cap. - 3 L Weight - 143 Kg Max. Temp - 90 ºC Gearbox type - RECTO Reduction ratios Forward - Reverse 1.61:1 - 1.61:1 2.06:1 - 2.06:1 2.45:1 - 2.45:1 2.82:1 - 2.82:1 3.12:1 - 3.12:1 3.45:1 - 3.45:1
