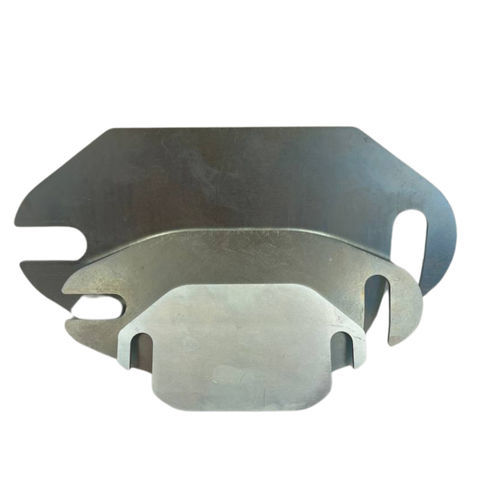

Stainless steel shim 616 series

Discover the shims height levellers developed and suitable for the engine replacements. These shims provide a precise and secure adjustment. They are made of an anticorrosion covering with an electrolytic galvanizing, 12/15 microns thick. The DIN rule about ships and high-speed light watercrafts (Shipment Jan 2001-Point4-Chapter3-Section1-F202), establishes that standard height adjustment systems are not acceptable for levelling due to the cyclic bending moments beared by the studs and screws. For this reason, placing shims under the silentblocks is the recommended method for a correct levelling of the silentblocks. The range consists of 3 packs, suitable for all the Solé Diesel engines and Hyundai leisure application. Solé Diesel engines with Deutz base are not included. All the packs include the box and 12 shims (3 different sizes* / 4 pieces per size) *Sizes: 3 / 5 / 10 mm On the other hand, you can read more about special feet for the repowering on the section Marine Engines/Special feet
