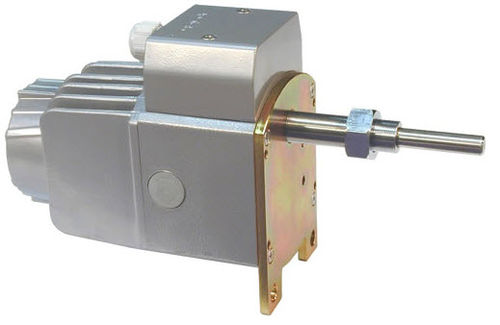

Ship windshield wiper motor TYPE SF - TORQUE 80NM

Motor Units with electromagnetic brake Motor unit type SF shall be used when it is necessary to employ a powerful wiper with arms up to 1200mm and blades up to 1300mm length. This motor units is equipped with an electromagnetic brake in order to have a stable park position. Code motor SF The code of motor unit type SF is composed as follows: SF.t.d.a. Where "SF" indicates the type, "t" the voltage, "d" the thickness of the bulkhead and "a" the wiping angle. Example: to order a motor unit type SF, 24V with wall thickness 30mm and 75° wiping angle, it is necessary to indicate following code: SF.024.30.75 To order a spare motor unit, it is necessary to communicate the serial number of the motor to be changed. The serial number is written on a label placed on the back of the motor. Wiper Arms The arms are custom made using AISI316 stainless steel. The standard finish is hand-polished natural colour. On request it is possible to supply the arms in black. Arms length is from 500mm to 900mm for both pantograph and pendulum setups, in either single or double configurations.
