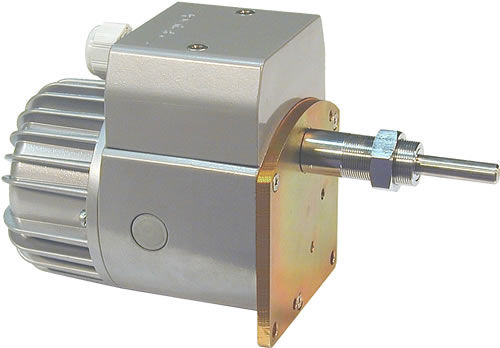

Ship windshield wiper motor TORQUE 45NM

Motor unit type M is designed to be used on medium sized windscreen wipers installed on work boats for civil and military applications. This motor has variable wiping angle and it is designed for heavy duty applications. Self-parking position, can be set either left or right. Code motor M The code of motor unit type M is composed as follows: M.t.d.a. Where "M" indicates the type, "t" the voltage, "d" the thickness of the bulkhead and "a" the wiping angle. Example: to order a motor unit type M, 24V with wall thickness 40mm and 65° wiping angle, it is necessary to indicate following code: M.024.30.75 To order a spare motor unit, it is necessary to communicate the serial number of the motor to be changed. The serial number is written on a label placed on the back of the motor. Wiper Arms The arms are custom made using AISI316 stainless steel. The standard finish is hand-polished natural colour. On request it is possible to supply the arms in black. Arms length is from 300mm to 900mm for both pantograph and pendulum setups, in either single or double configurations.
