Underwater pump 7 1106 0010
transfercoolingwater

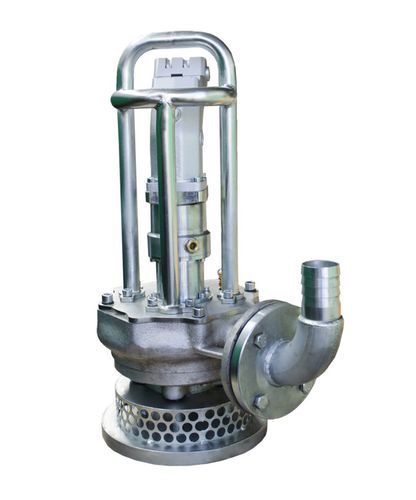

Underwater pump - 7 1106 0010 - Spitznas - transfer / cooling / water
Underwater pump - 7 1106 0010 - Spitznas - transfer / cooling / water
Underwater pump - 7 1106 0010 - Spitznas - transfer / cooling / water - image - 2
Underwater pump - 7 1106 0010 - Spitznas - transfer / cooling / water - image - 3
Underwater pump - 7 1106 0010 - Spitznas - transfer / cooling / water - image - 4
Underwater pump - 7 1106 0010 - Spitznas - transfer / cooling / water - image - 5
Underwater pump - 7 1106 0010 - Spitznas - transfer / cooling / water - image - 6
Add to favorites
Compare this product

Go to the Spitznas website for more information

Characteristics

Application domain
underwater
Applications
transfer, cooling
Fluid
water
Operation
hydraulic
Protection level
ATEX
Flow rate

30 l/min
(7.93 us gal/min)

Pressure

250 bar
(3,625.9 psi)

Weight

53 kg
(116.8 lb)

Height

665 mm
(26 in)

Length

290 mm
(11 in)

Width

495 mm
(19 in)

Description

The high conveyor rate is one of the highlights of this hydraulic sump pump. The pump is designed for relatively clean fluids, e.g. water and cooling agents (no grinding liquids). The minimum immersion depth is 240 mm. The pump can be immerged fully into the medium to be pumped and can be used as well in explosive secured areas. ATEX: IM2ExhIMbT3 / II2GExhIIBT3Gb Pumping capacity at a height of 10 m - 80.0 m³/h Max. pumping head - 45.0 m Delivery outlet - DN50-PN10/ nozzle dia. 52 mm/inch Hydraulic connection - 3/4-16UNF-2B Noise level LpA - <70.0 dB(A) Fields of application / branch - Energy and pipeline construction; Plant and mechanical construction; Underwater Work
