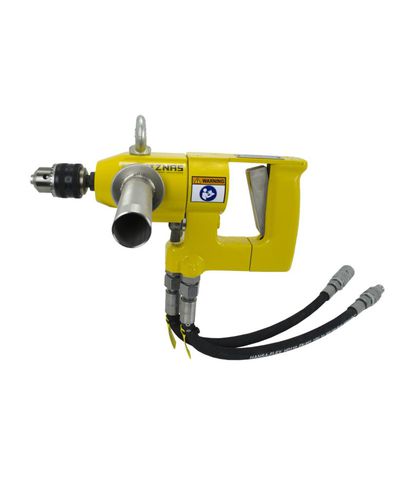

The hydraulic drill with D-handle for open circuit is easy to handle and for universal use, with geared chuck up to dia. 13 mm, reversable, as well usable in explosive areas and for underwater operation.
Tool holder: Geared chuck
ATEX Specification - II2GExhIIBT5Gb
Operating pressure - 140 bar
Shank - Geared chuck up to dia. 13 mm
Max. drilling dia. in steel - 13,00 mm
Max. drilling dia. in wood - 30,00 mm
Function - revering (left/right)
Power - 2.0 kW
Volume flow - 15-30 l/min
Dimensions - 320x280x237 mm
Connection - SAE Port No. 8 (3/4x16UNF-2B)
Hydraulic hose connection - Flat-Star A250-OM/OF-1/2”BSP
Hydraulic medium - Hydrauli oil
Hydraulic circuit type - open circuit
Oil filtration class - ISO-level of purity 20/18/13
Temperature of oil - -34 up to +82 °C
Viscosity of oil - >13 centistokes
Noise level LpA - 80.0 dB(A)
Noise level LWA - 91.0 dB(A)
Vibration level - <2.5 m/s²
Weight - 7.3 kg
Fields of application / branch - Energy and pipeline construction; Metal industry and steel construction; Plant and mechanical construction; Underwater Work
