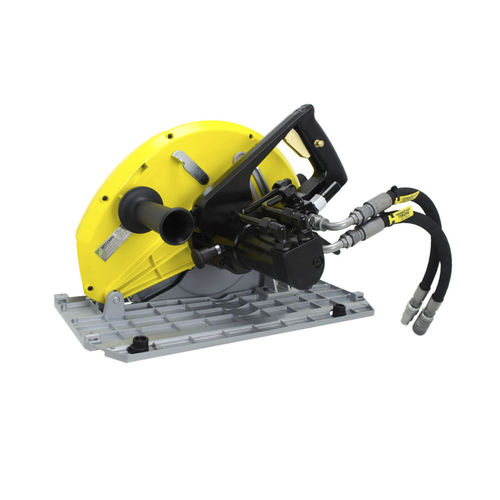

Circular underwater saw 5 1127 0010

hydraulicfor pipe

The hydraulic circular saws for universal use, as well in explosive atmosphere areas. Energy source - Hydraulic Operating pressure - 140-180 Bar Volume flow - 20-23 l/min Power - 2.3 Max. saw blade dia. - 320.00 mm Speed (free) - 1.800 rpm Cutting depth at 90°/45° - 120.0/- mm Center dia. for saw blade - 25.4 mm Water cooling connection - Gardena NW 1/2" x 16 mm Connection - SAE Port No. 8 (3/4x16UNF-2B) mm Hydraulic hose connection - Flat-Star A250-OM/OF-1/2”BSP Hydraulic medium - Hydraulic oil Hydraulic circuit type - open circuit Oil filtration class - ISO-level of purity 20/18/13 Temperature of oil - -34 bis +82 °C Viscosity of oil - >13 centistokes Noise level LpA - 85.0 dB(A) Noise level LWA - 96.0 dB(A) Vibration level - <2.5 m/s² Weight - 12.2 kg Fields of application / branch - Energy and pipeline construction; Metal industry and steel construction; Plant and mechanical construction; Underwater Work
